Sagemcom F@st 1704 router configuration


Sagemcom F@st 1704 router configuration


LOGIN TO THE ROUTER
  1. Connect your Router Port 4 to ONT port 1 (this is default port for internet, if settings are not changed in ONT) and connect your computer to Router 2 or 3.
  2. Open Internet Explorer/Firefox type http://192.168.1.1 or http://myrouter
  3. Give username admin and password admin


INTERNET CONNECTION SETUP
    • Go to Advanced Setup > LAN Ports
    • Select (tick on) ENET (1 - 4) option > Click Appy/Save button.

    • go to wan service > remove any existing configuration

    • go to advanced setup>atm interface > remove existing atm configuration

    • Go to Advanced Setup > Layer 2 Interface > Ethernet Interface.
    • Click Add
    • Select Port 4 (eth0.5/ENET 4)  > Click Apply/Save.

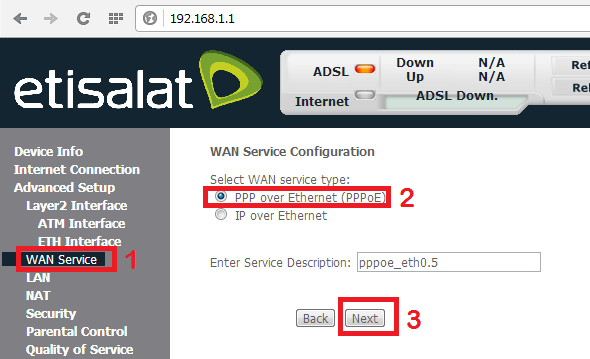

    • Go to Advanced Setup > WAN Service
    • Click on Add button.

    • Select the ET0.5/ENET 4 > Next

    • Select PPPoE option > Next

    • Give username, password > Next

    • Click Next > Next > Next > Apply/Save.



    • Reboot your router.
    WIRELESS CONNECTION SETUP
    • Click on Wireless option
    • Select Enable Wireless Option > Give any SSID > Click Apply/Save button.


    •  Go to Security option of Wireless tab > Select WPA2 with TKIP/AES for better security > Give wireless password > Click Apply/Save button


    11 comments:

    1. Brother what is range this router plz tell me?

      ReplyDelete
    2. You can find the specs detail here

      http://www.sagemcom.com/fileadmin/bloc_pages_html/Communication/Acces_Hau_Debit/pdf/Fast_1704_GB.pdf

      ReplyDelete
    3. how to get the software of sagem f@st1704

      ReplyDelete
      Replies
      1. Pls visit http://www.sagemcom.com
        or you can find the s/w in CDROM inside the box-pack.

        Delete
    4. hello friend....

      I do have the same product from etisalat which i purchased and later my contract over i came with this product to india..india i cant configure this product with the bsnl..may i know what is the number of the DSL cable code for ths product..

      ReplyDelete
    5. i am using sagem f@st1704 (bought from etisalat) it use to work perfactly but all of sudden wireless stop working, what is the reason? peachdubai@gmail.com

      ReplyDelete
      Replies
      1. Please check the wifi LED, if it is off frequently or automatically then you should change the router. I don't think Etisalat will provide new firmware for this router.

        Delete
    6. I have F@ST1704 which is getting public IP automatically from etisalat. It is being changed if I restart the router. Is there any option on router that I can make my current public IP static?

      ReplyDelete
    7. I am using this router from etisalat since 2 years. Now my wifi gets disconnected frequently and I have to switch off and on after few secs. Is this a known error on this type of device? Do anybody have the latest firmware of etisalat for this device?

      ReplyDelete
